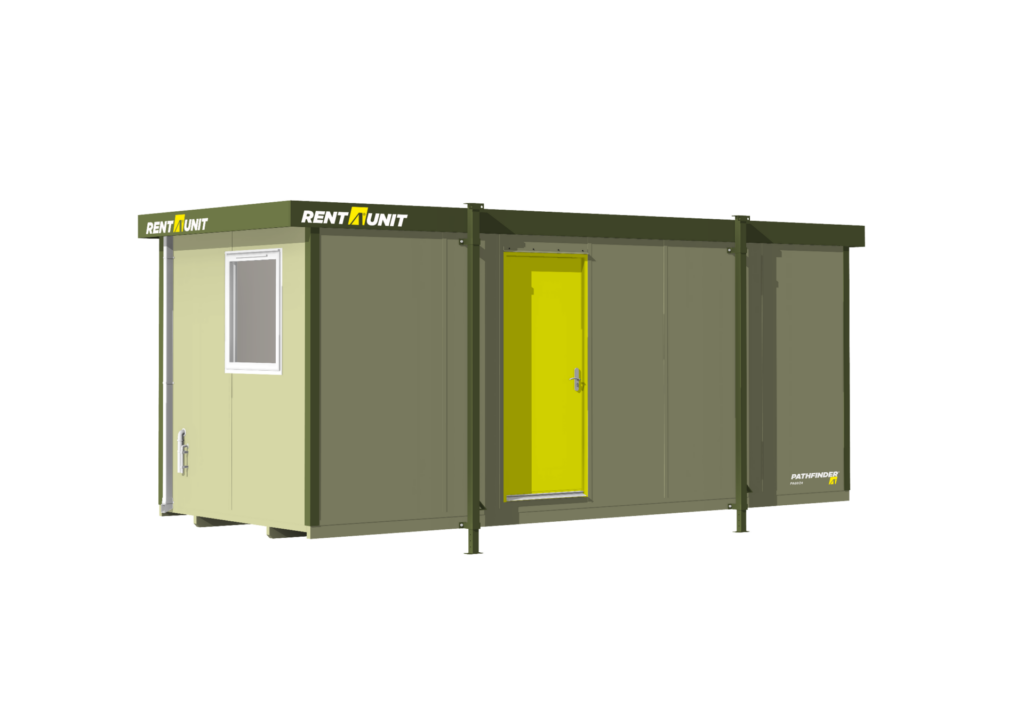

20ft x 8ft pathfinder portable building specifications


Standard White – 900mm wide x 1000mm high, vented top opening. White reveal internal liners, double glazed units.


Kirncroft 910mm x 2065mm 10 point multi locking galvanised steel sprayed with 2 pack primer and 2 pack sunflower yellow B/S 10E55. High security insulated doors with exceptionally low u value of 1.8. Stainless Steel lever handles, stainless steel anti knockout fully welded hinges and high security euro cylinder locks.


Firestone single membrane rubber EPDM blanket and rainwater outlets on 15mm OSB decking on 32mm x 140mm joisting, encompassing 100mm loft roll insulation. 65mm white downpipes, overhanging fascia and soffit’s and deep 200mm deep fully clad 0.5g plastic coated steel Olive Green B/S 12B27 18mm ply backed.

external walls

88mm framing clad with 9mm hardwood ply, plastic coated 0.5mm 200 micron sheet steel wall panels. External finish stressed leather texture B/S 12B21

Internal walls & CEILINGS

White 12.5mm Dolomite design vinyl faced pre finished plasterboard with matching 40mm white H section joints. Creme 12.5mm design vinyl faced pre finished plasterboard wall boarding with complimenting 40mm creme H section board joints. 60mm cladding insulation roll to walls. 50mm chamfered brown skirting. Ceiling height 2210mm

Floor & Coverings

150mm x 50mm timber ring beam. Joisting 90mm x 45mm C16, insulated with standard foil insulation barrier. Floor covering Beige 2mm gauge heavy commercial welded vinyl with a 2.6kg/m sq wear layer


12ft to 24ft x 8ft Units – 60mm/70mm mild steel telescopic single pack sprayed in Olive Green B/S 12B27 satin finish.


  • 2 x 1200mm led lights
  • 5 x double sockets
  • 1 x 1.5k/w programmable panel heater

All units come pre wired for fitting sink, base unit with over sink heater powered by switched fused spur, and with provision for microwave toaster and kettle sockets and under counter double socket for fridge/freezer or dishwasher.

We reserve the right to amend / improve our specification (s) without prior notice
