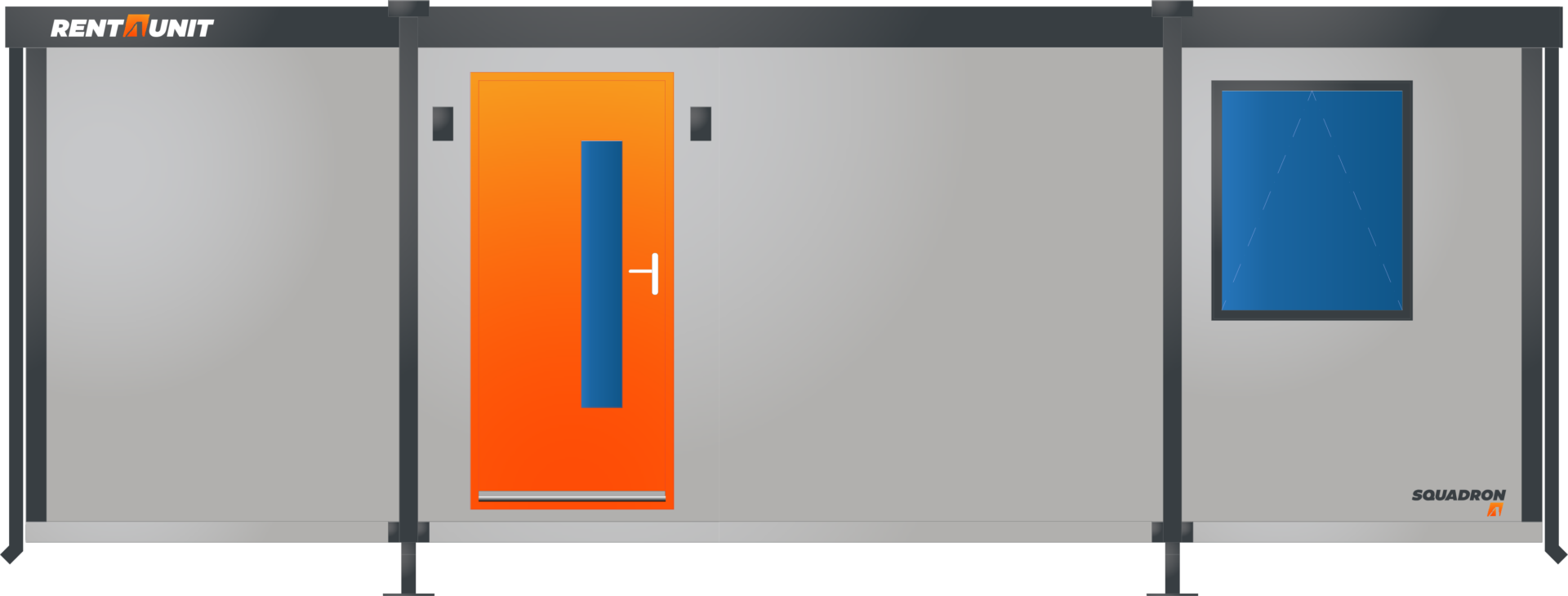

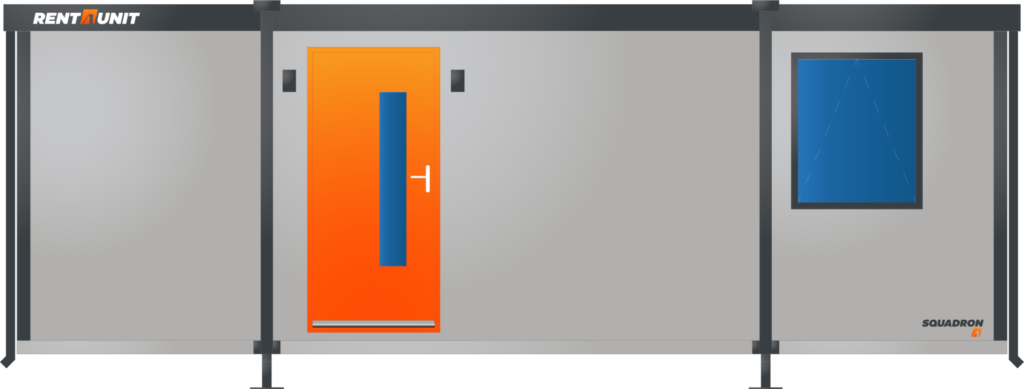

24ft x 10ft squadron® PORTABLE BUILDING specifications

Windows

Anthracite Grey – RAL7016 – 950mm wide x 1150mm high vented top opening, white internal, lockable with blue tinted Pilkington K double glazing.

Doors

Kirncroft 910mm x 2065mm 10 point multi locking galvanised steel sprayed with 2 pack primer and 2 pack Burnt Orange Gloss RAL2004. High security insulated doors with 155mm wide x 2155mm high triple glazed toughened combined with G/W polished plate glazing, exceptionally low u value of 1.8. Stainless steel lever handles, stainless steel anti knockout fully welded hinges and high security euro cylinder locks.

Roofs

Firestone single membrane rubber EPDM blanket and rainwater outlets on 15mm OSB decking on 32mm x 140mm joisting, encompassing 100mm loft roll insulation. 65mm anthracite Downpipes, overhanging fascia and soffit’s and deep 200mm deep fully clad 0.5g plastic coated steel Merlin grey B/S 18B25 18mm ply backed faisure boards.

external walls

88mm framing clad with 9mm hardwood ply fully balanced plastic coated 0.5mm 200 micron sheet steel wall panel’s fully balanced with formica or steel. External stressed leather texture finish B/S 10A05

Internal walls & CEILINGS

White 12.5mm Dolomite design vinyl faced pre finished plasterboard with matching 40mm white H section joints. OSAKA 12.5mm design vinyl faced pre finished plasterboard wall boarding with complimenting 40mm cream H section board joints (fully wrapped joints available on all bespoke sale units) 60mm cladding insulation roll to walls. 60mm chamfered skirting. Ceiling height 2210mm

Floor & Coverings

195mm x 50mm timber ring beam rebated 145mm x 15mm. Joisting 145mm x 45mm C16, insulated with TLX Silver multi foil 2in1 40mm blanket foil insulation barrier. Floor covering Beige 2mm gauge heavy commercial welded vinyl with a 2.6kg/m sq wear layer

Jacklegs

80mm/90mm mild steel telescopic single pack sprayed in Merlin Grey B/S 18B25 satin finish.

Electrics

  • 3 x 1200mm led lights
  • 6 x double sockets
  • 1 x double socket USB charging
  • 2 x 1.5k/w programmable panel heaters
  • 1 pair external up & down wall lights
  • 1 x external double socket
  • All units come pre wired for fitting sink, base unit with over sink heater powered by switched fused spur, and with provision for microwave toaster and kettle sockets and under counter double socket for fridge/freezer or dishwasher.

    We reserve the right to amend / improve our specification (s) without prior notice
